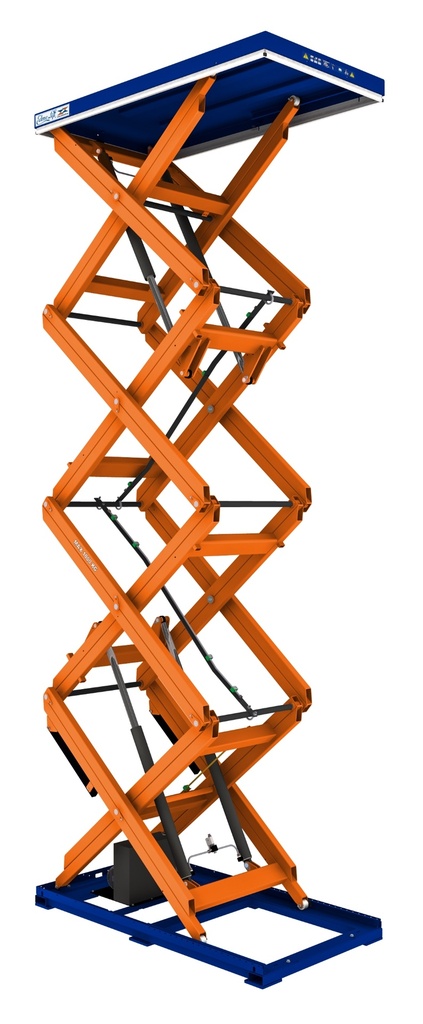

TSQ 1000 Vertical Lift Table
The TSQ 1000 is a four-scissor vertical lift table with a 1,000 kg load capacity and a lifting stroke of up to 6,000 mm, designed for industrial applications requiring extended vertical travel. The platform (2,200 × 1,200 mm) reaches its lowest position at 1,000 mm from the ground and completes a full lift cycle in 80 seconds, powered by an internal 3.5 kW (S3) motor unit running on 400V three-phase supply. The unit features a standard 2-button control unit and is CE certified in accordance with EN 1570-1, ensuring compliance with European safety requirements for lift tables.
