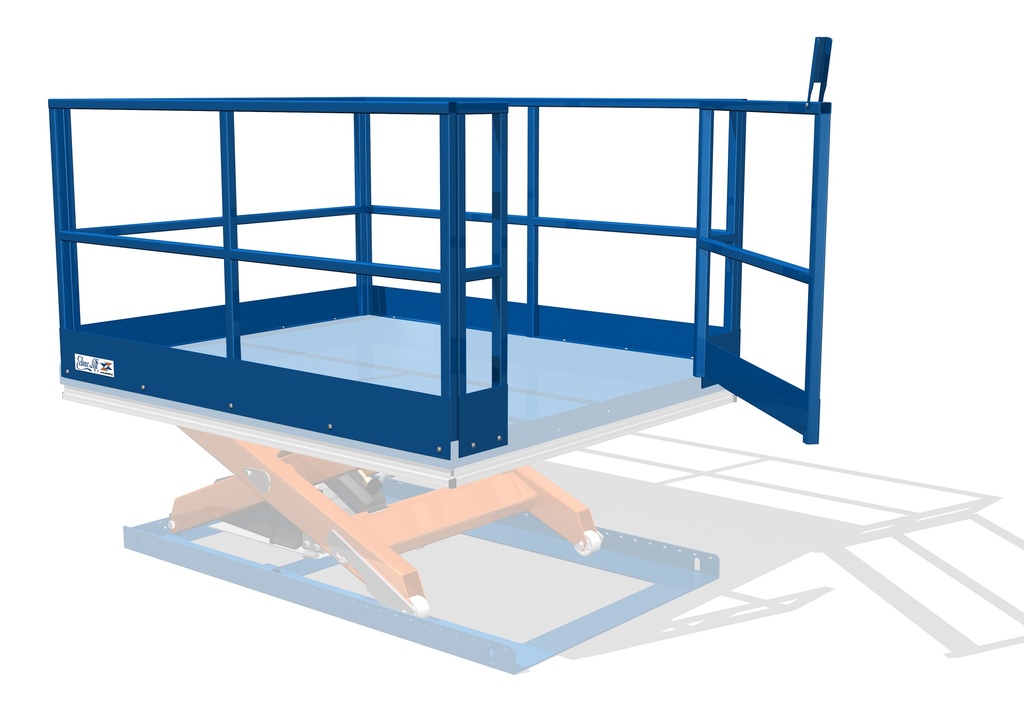

Guard Rail with Gate for Lifting Platforms

Guard rails and a gate: they are mandatory when trained people accompany the load (EN 1570-1). The guard rail is 1100 mm high with a 150 mm toe board, and the gate with latch is up to 1200 mm wide; beyond that a double gate is needed.

With a mechanical latch, an electromechanical lock or both; there is also a version prepared for the lock. In the order, state the hinge side, opening direction and type of closure.

Start from how you will use it: people on board need guard rails and a gate; in a pit, limit switches, lifting eyes, mechanical blocks and an inspection hatch or external power unit; outdoors, an anti-slip deck and a covered power unit; loads that roll need an anti-roll stop, loads to be rotated a turntable. Tell us the model and the use and we will recommend the compatible accessories.

Many, yes: control pendants, limit switches, photocells and other electrical accessories plug into the M12 connectors of the UC-60 control unit, without an electrician and without opening it. The HD kit, anti-roll stop, adjustable mechanical blocks and anti-tip device must instead be ordered with the lift table, as they cannot be fitted later. To check compatibility, give us the model and serial number from the rating plate.
