Adjustable Mechanical Blocks

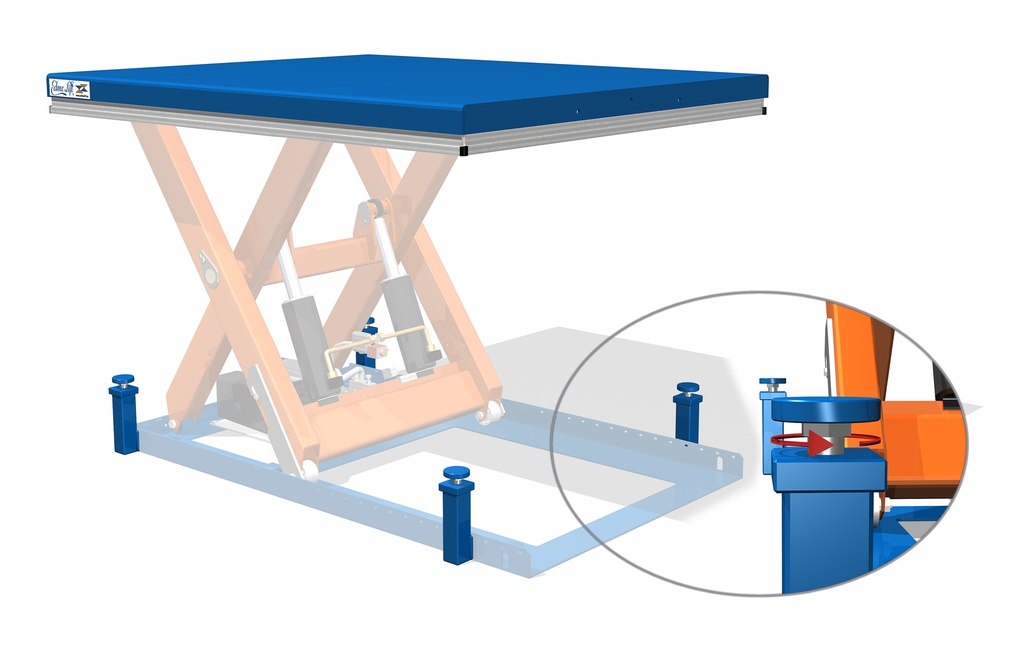

The adjustable mechanical blocks (±40 mm) in the base frame, which support the lowered platform flush with the floor, together with the reinforced deck. Double horizontal scissor lift tables need 2 sets.

No, mechanical blocks do not increase the capacity of the lift table: to let heavier weights pass there are the mechanical deck locks, defined with Edmolift. The blocks must be ordered with the lift table, as they cannot be fitted later.

Start from how you will use it: people on board need guard rails and a gate; in a pit, limit switches, lifting eyes, mechanical blocks and an inspection hatch or external power unit; outdoors, an anti-slip deck and a covered power unit; loads that roll need an anti-roll stop, loads to be rotated a turntable. Tell us the model and the use and we will recommend the compatible accessories.

Many, yes: control pendants, limit switches, photocells and other electrical accessories plug into the M12 connectors of the UC-60 control unit, without an electrician and without opening it. The HD kit, anti-roll stop, adjustable mechanical blocks and anti-tip device must instead be ordered with the lift table, as they cannot be fitted later. To check compatibility, give us the model and serial number from the rating plate.
