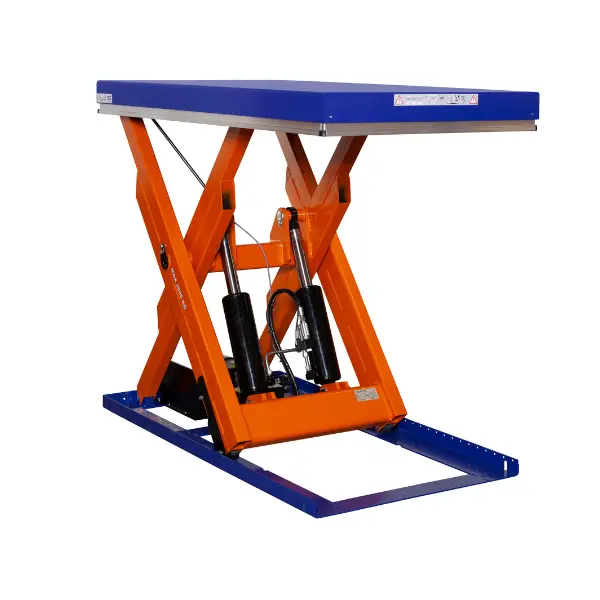

TM 3000 Single Scissor Lift Table

A pit of 1730 × 930 mm, 255 mm deep: platform length and width +30 mm, lowest height +5 mm. C12/15 concrete, 100 × 100 mm L-profile on the edges and a Ø 100 mm conduit for cables and hoses. For pit installation, limit switches, lifting eyes, mechanical blocks and an inspection hatch or an external power unit are recommended.

Yes, up to 10 cycles per hour and 10,000 per year. Beyond that you need the HD kit 82103, ordered with the platform: it cannot be fitted later. For continuous 24/7 duty there is the HDM 2000 from the HD Series.

As standard it has C3 corrosion protection and IP54 electrics; C4 corrosion protection and galvanising are available on request. For the food industry and frequent washing there are the AISI 304 stainless steel lift tables, with an IP65 control panel.

Yes: the platform top can be drilled to fix equipment or guides, avoiding the area where the scissor runs.

Orange RAL 2009 and blue RAL 5002 as standard. Anthracite grey RAL 7024 and black RAL 9005 at no extra charge; other RAL colours, over 200, on request at an extra charge.

The Series T is made entirely in Sweden and is configured with accessories, controls and colours. The Series C is the lighter, more economical version: the hydraulics and many components are the same as on the T, but it cannot be customised, takes only a few accessories and has fixed colours orange and blue.

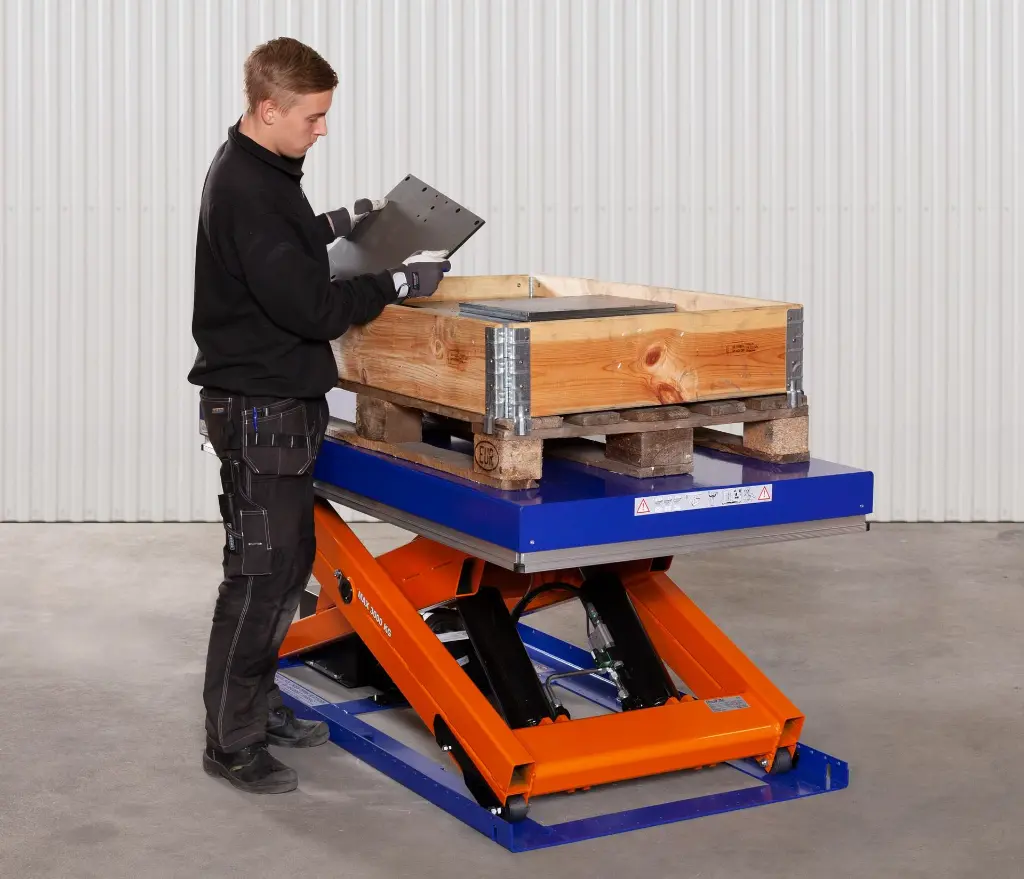

A lift table brings the load to the right working height at the push of a button: people work without bending and without lifting by hand. If the load also has to move between workstations there is the scissor lift trolley; for picking from pallets and bins, the pallet lifters and tilters.

Start from three things: the weight of the load and how it rests, the lowest and highest working height (the difference is the stroke) and the platform size you really need. Then consider cycles per hour, environment and safety. The lift table buying guide, with its 4-question selector, shows you the suitable models.

For long or heavy loads there is the double horizontal scissor: two synchronised scissors in tandem lift a platform up to 6000 mm long, with capacities up to 10,000 kg. For long strokes without a bigger footprint, also to connect two levels, the double, triple or quadruple vertical scissor reaches a 6000 mm stroke.

A low-profile lift table: closed, it is only 80–100 mm high and stands on the floor, with no building work. With a U- or E-shaped platform (TUL, TUB, CUB) the pallet truck leaves the pallet on the platform; with a full platform you drive on via the access ramp. Capacity up to 2000 kg.

Yes: it is CE marked to EN 1570-1, tested with a load 30% above the rated capacity and supplied with the declaration of conformity. As standard it has the anti-crush safety bar on all 4 sides, the double non-return valve against sudden lowering and mechanical blocks for maintenance.

Only trained people accompanying the goods: EN 1570-1 allows this with no more than two stops and without travelling past a fixed floor. Guard rails and a gate, an anti-slip platform if there is a risk of slipping and the marking that authorises people on board are required: it is not a lift nor an aerial work platform.

Yes: it can be controlled via PLC and various functions can be programmed even on the standard version. The UC-60 control unit has M12 plug & play connectors for limit switches, photocells and sensors, and a roller conveyor can be fitted on the platform to transfer material between different levels.

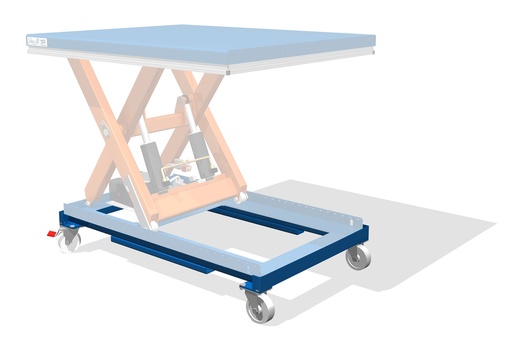

Yes, with a dedicated frame: the wheeled frame (2 fixed and 2 swivel castors with brakes) makes it mobile, while the raised frame lets you move it with a forklift or pallet truck and leaves foot space for the operator. If the load has to move often between workstations, consider a scissor lift trolley.
