Manual side tilting gripper for waste bins

Manual side tilting gripper for waste bins

https://ergonomia.shop/web/image/product.template/2607/image_1920?unique=d0a6f66

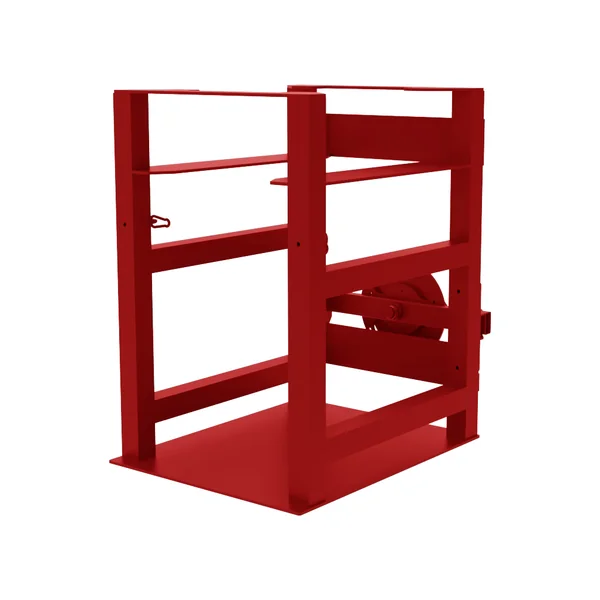

The Manual side tilting gripper for waste bins (ref. WPR-T-9027) is a Work Positioner tool that hooks onto the waste container, lifts it and turns it sideways to empty it. Tilting is manual, with rotation lock included. It is custom-made in painted steel: length from 400 to 900 mm and width from 400 to 800 mm, to fit the bin in use. Capacity up to 80 kg, for the WP 205 Work Positioner.

Not Available For Sale

Code: WPR-T-9027
  • Version
  • Dimension

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

Dimension Custom
Version Steel

The gripper hooks the bin, lifts it and turns it sideways by hand; the included rotation lock holds it in the chosen position. It is a made-to-measure tool: send us the dimensions and a drawing of the load and we will check the capacity on your Work Positioner.

It only fits the WP 205, with a usable capacity of 80 kg.

Yes, with the quick change for manual tools: the trolley part stays on the Work Positioner (WPR-A-0003-SS) and the tool part is fitted to this tool. You can then change it in a few seconds, on your own, without unscrewing it; without the quick change it is fixed to the carriage with screws.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.
