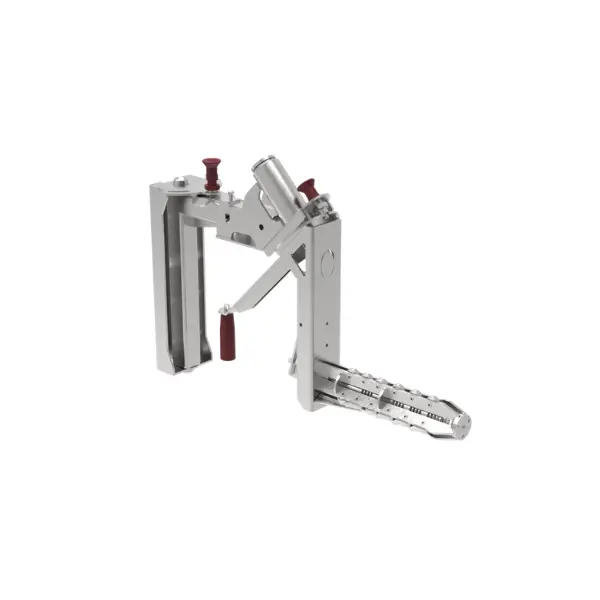

Manual core gripper with tilting 90° - 80 Kg
The manual swivel core gripper with 90° rotation (WPR-T-0028-SS) is designed for handling reels with a Ø 76 mm core, with a load capacity of up to 80 kg and a 90° tilting function to turn the load from vertical to horizontal. The stainless steel structure (length 283 mm, width 76 mm) provides strength and hygiene in demanding production environments. It is compatible with the WP 125 SS Work Positioner and supports dedicated accessories such as the Ø 76 mm core extension (WPR-A-0017-SS) and the Ø 152 mm core adapter (WPR-A-0018-SS), extending the versatility of the tool.
Work Positioner Tools · Grippers
Swivel Core Gripper 90° 80 kg for Work Positioners
It slides into the 76 mm (3") core of the reel, picks it up from the floor or the pallet and turns it by 90° by hand to load it into the machine: typical for stretch film reels. Stainless steel, up to 80 kg. A core gripper (reel gripper) for work positioners.
Why choose it
From vertical to horizontal
It turns the reel by 90° to load it into the machine.
Ø 152 mm cores too
With the WPR-A-0018-SS adapter; WPR-A-0017-SS extension.
From WP 55 to WP 205
40 kg on the WP 55, 80 kg on WP 125 and WP 205.
See it at work
WP 125 with swivel core gripper for reels
Technical data
| Version | Stainless Steel |
| Length mm | 283 |
| Width mm | 76 |
The usable capacity depends on the Work Positioner the tool is fitted to: you will find it below for each model.
WP 55Usable capacity 40 kg
WP 65Usable capacity 50 kg
WP 85Usable capacity 70 kg
WP 125Usable capacity 80 kg
WP 205Usable capacity 80 kg
Core gripper adapter for reel with core Ø 152 mmAdapter for Ø 152 mm cores
Extension for expandable hub Ø 76 mmExtension for the expandable mandrelWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
