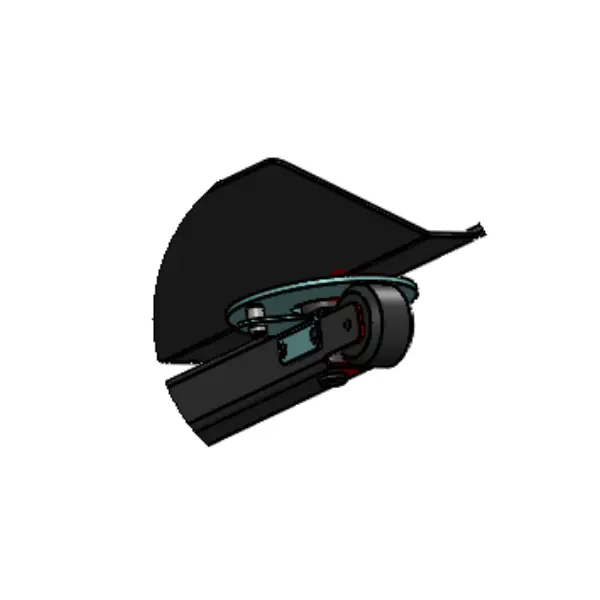

Rotation indexing system with 90° locking by ball screw
The Rotary indexing system with 90° locking by ball screw (WPR-A-0029-SS) is a stainless steel accessory for the V platform, designed to provide precise, repeatable angular positioning in work positioning applications. The 90° locking by ball screw ensures stability and reliability while handling the workpiece. Compatible with the stainless steel booms with wheel (Ref. WPR-T-0001-SS / WPR-T-0002-SS / WPR-T-9002-SS).
Work Positioner Tools · Booms
90° Ball Screw Lock for V-Support, Stainless Steel Work Positioner Booms
Rotation indexing system with ball screw: it locks the V-support every 90°. For the stainless steel booms with wheel WPR-T-0001-SS, WPR-T-0002-SS and WPR-T-9002-SS. An accessory for the work positioner boom (reel mandrel).
Why choose it
Locked position
The V-support stays locked every 90°.
For stainless steel booms
WPR-T-0001-SS, WPR-T-0002-SS and WPR-T-9002-SS.
Steel version
For steel booms there is WPR-A-0028-SS.
Technical data
| Version | Stainless Steel |
Below are the Work Positioner models and tools it is used with.
Compatible with
WP 55With the stainless steel booms with wheel
WP 85With the stainless steel booms with wheel
WP 125With the stainless steel booms with wheel
Boom with wheel + V-support 360°Boom with 360° V-support
Boom with wheel for V supportBoom with Wheel for V-Support
Rotation indexing system with 90° locking by indexable fingerVersion for steel boomsWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
