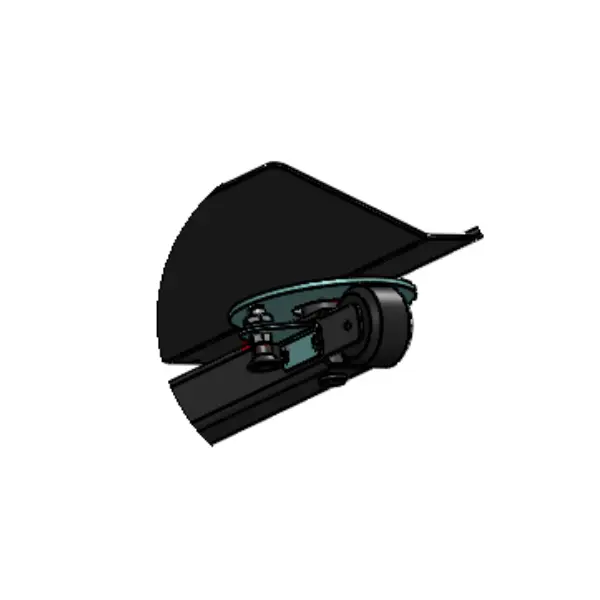

Rotation indexing system with 90° locking by indexable finger
The Rotation indexing system with 90° locking by indexing pin (WPR-A-0028-SS) is a stainless steel accessory for the V platform, designed to provide precise, repeatable angular positioning at 90°. Locking is by an indexable positioning pin, ensuring stability and reliability in work positioning applications. It is compatible with the steel booms with wheel (ref. WPR-T-0001 / WPR-T-0002 / WPR-T-9002).
Work Positioner Tools · Booms
90° Pin Lock for V-Support, Steel Work Positioner Booms
Rotation indexing system: a pin locks the V-support every 90°. For the steel booms with wheel WPR-T-0001, WPR-T-0002 and WPR-T-9002; stainless steel material. An accessory for the work positioner boom (reel mandrel).
Why choose it
Locked position
The V-support stays locked every 90°.
For steel booms
WPR-T-0001, WPR-T-0002 and WPR-T-9002.
Stainless steel version
For stainless steel booms there is WPR-A-0029-SS.
Technical data
| Version | Stainless Steel |
Below are the Work Positioner models and tools it is used with.
Compatible with
WP 55With the booms with wheel
WP 65With the booms with wheel
WP 85With the booms with wheel
WP 125With the booms with wheel
WP 205With the booms with wheel
Boom with wheel + V-support 360°Boom with 360° V-support
Boom with wheel for V supportBoom with Wheel for V-Support
Rotation indexing system with 90° locking by ball screwVersion for stainless steel boomsWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
