Wave platform with rollers

Wave platform with rollers

https://ergonomia.shop/web/image/product.template/1817/image_1920?unique=d0a6f66

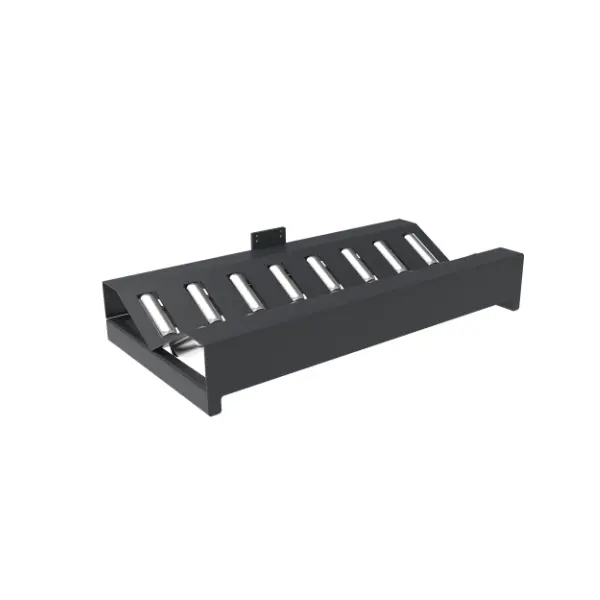

The Wave platform with rollers is available in steel and stainless steel versions, measuring 800 x 550 mm, and integrates into the positioning and lift/tilt solutions of the LeanProducts range. The rollers make it easier to slide and reposition loads on the work surface, while the fixing system allows mounting on plates with a maximum thickness of 2 units.

Not Available For Sale

Code: WPR-T-9039
  • Version
  • Length mm
  • Width mm

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

Version Steel
Length mm 800
Width mm 550

When the load is bigger or heavier: the top measures 800 × 550 mm, has rollers so the load can slide and carries up to 160 kg on WP 205 and WP 285. It weighs 25 kg, in painted steel or stainless steel.

Usable capacity with this tool: 100 kg on the WP 125, 160 kg on the WP 205 and 160 kg on the WP 285. For stainless steel Work Positioners there is the stainless steel version, code WPR-T-9039-SS.

Yes, with the quick change for manual tools: the trolley part stays on the Work Positioner (WPR-A-0001-SS up to the WP 125, WPR-A-0003-SS for WP 125 and WP 205) and the tool part is fitted to this tool. You can then change it in a few seconds, on your own, without unscrewing it; without the quick change it is fixed to the carriage with screws.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.
