CRD 200 Vertical Lift Table

Cod.: 36472

Lowest Height mm
Scissor lift
Lift Time sec.
Peso Kg
- 180
Control Unit
Power Pack
- Internal
Power kW (S3)
Power Supply
Certificate

This combination does not exist.

Category: Piattaforme e Carrelli a Pantografo Serie C, Doppio & Triplo Pantografo Verticale, Doppi, Triplo Pantografo Verticale

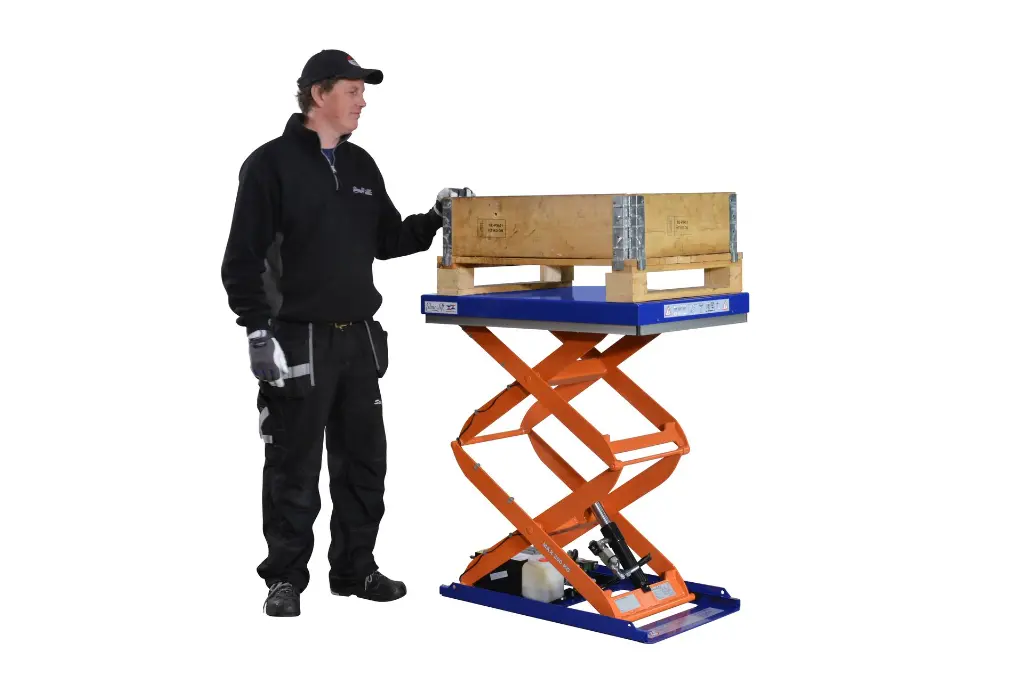

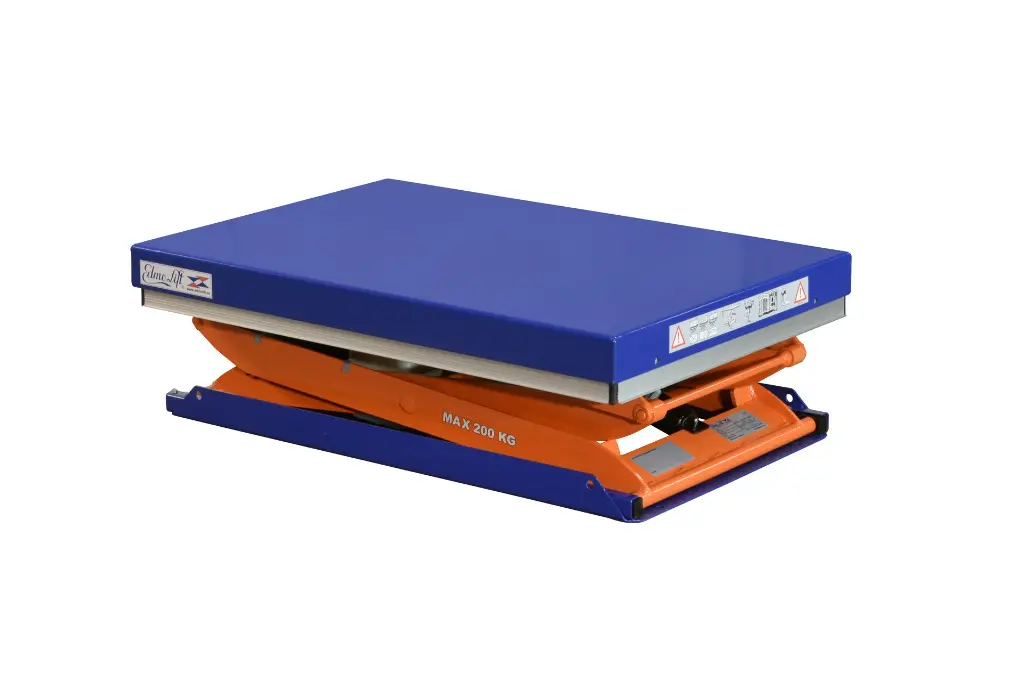

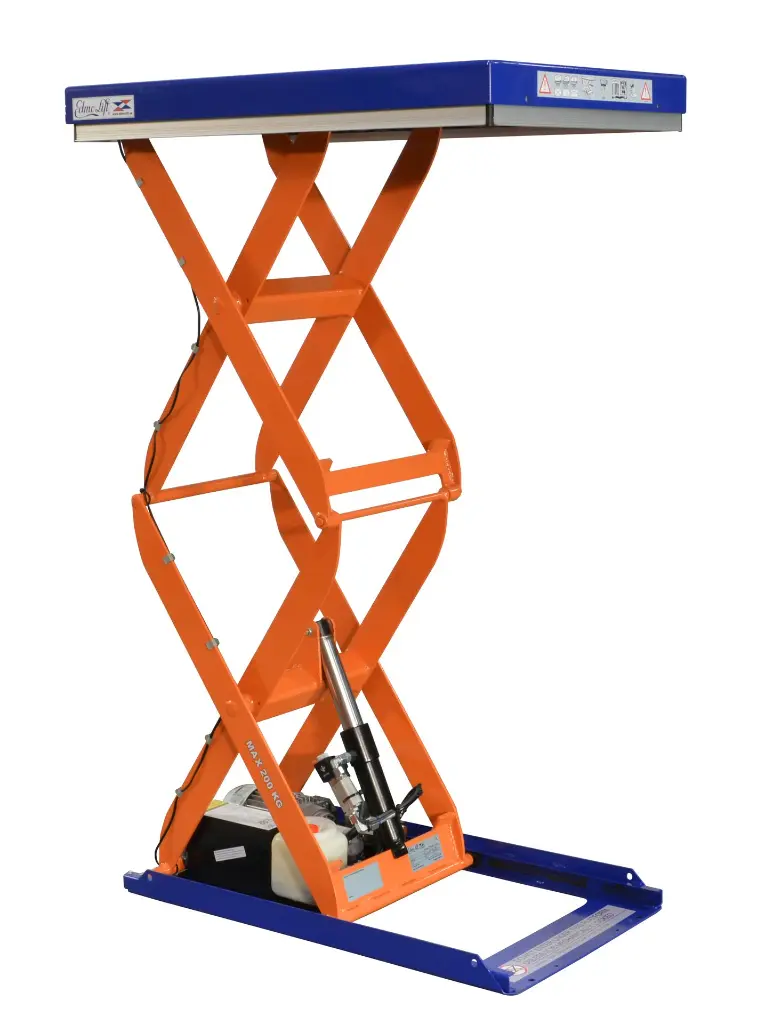

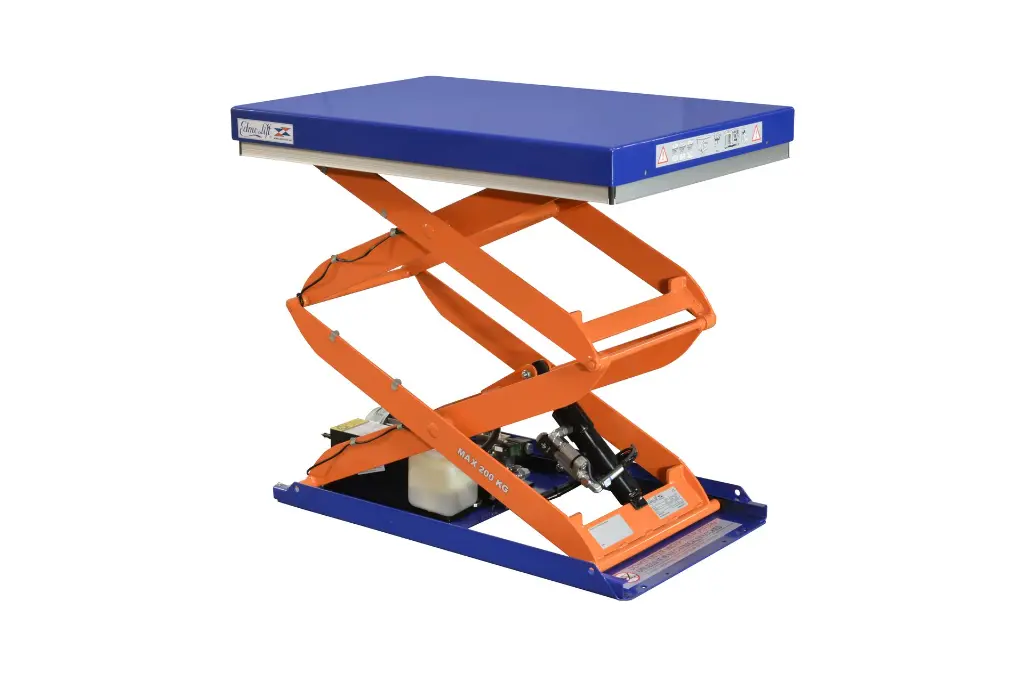

Multi-Stage Vertical Lift Table CRD 200

The CRD 200 is a professional multi-stage vertical lift table designed for ergonomic and safe material handling operations. Entry-level solution with excellent value for money, ideal for standard applications.

Technical Specifications

Maximum capacity: 200 kg
Lift stroke: 1170 mm
Minimum height: 280 mm
Maximum height: 1450 mm
Platform size: 900 x 600 mm

Safety Features

Perimeter anti-crush bar in aluminum
Dual non-return valve (mechanical and electrical)
Mechanical maintenance locks
Safety spacing between moving parts
CE certification according to EN 1570-1

Typical Applications

Ideal for: production lines, assembly, packaging, logistics, loading/unloading, ergonomic workstations, palletizing.

UC-60 Plug & Play System

Equipped with the exclusive UC-60 system with standard M12 connectors for quick accessory addition without electrician intervention.

Specifications

Edmolift
Capacity Kg	200
Lift Stroke mm	1170
Lowest Height mm	280
Lift Table Lenght mm	900
Lift Table Width mm	600
Scissor lift	Vertical Double Scissors
Lift Time sec.	12
Control Unit	Standard Control Unit 2 Buttons
Power Pack	Internal
Power kW (S3)	0,55
Power Supply	Triphase 400V
Certificate	CE - EN 1570-1

Uncategorized
Peso Kg	180
