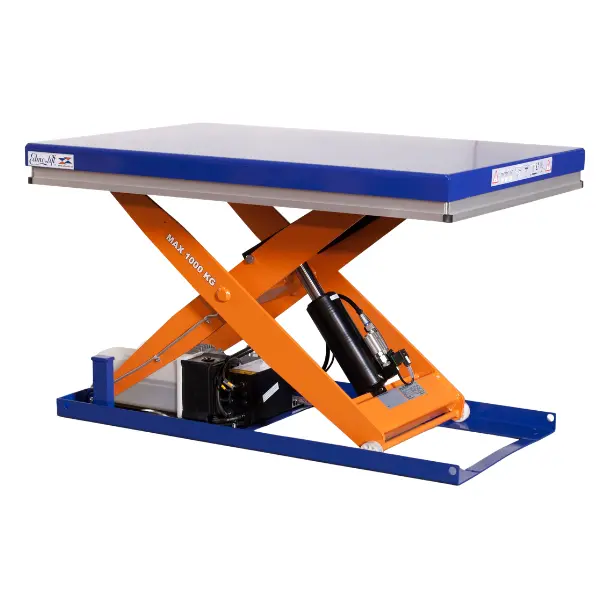

CL 1001 Single Scissor Lift Table

https://ergonomia.shop/web/image/product.template/11/image_1920?unique=114c629

The CL 1001 Single Scissor Lift Table is an industrial single scissor lifting solution with a capacity of 1,000 kg and a lifting stroke of 820 mm, designed to optimise ergonomic load handling on the production line. The 1,200 × 800 mm platform has a minimum height of 180 mm, with a rise time of 15 seconds provided by the 0.95 kW (S3) internal motor unit powered by 400V three-phase supply. Control is via a standard 2-button unit, integrated into the internal power unit. The product is CE certified to EN 1570-1.

2,344.30 € 2344.3 EUR 2,544.00 € 7.85 % OFF

Not Available For Sale

Code: 36045
  • Lowest Height mm
  • Max Height mm
  • Scissor lift
  • Lift Time sec.
  • Weight Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Download PDF data sheet


Specifications

Capacity Kg 1000
Lift Stroke mm 820
Lowest Height mm 180
Max Height mm 1000
Lift Table Length mm 1200
Lift Table Width mm 800
Scissor lift Single Scissor
Lift Time sec. 15
Weight Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 0.95
Power Supply Three-phase 400 V
Certificate CE - EN 1570-1

The CL 1001 is electro-hydraulic: an electric motor (0.95 kW, 400 V three-phase) drives the pump and hydraulic cylinder that raise the scissors. It combines hydraulic power with push-button electric control.

It weighs about 180 kg; the platform is 1200 × 800 mm and the closed height is 180 mm.

The C series is designed for up to about 4 lifts per hour. Continuous cycles need T or HD series tables: we size them for your duty cycle.

For the C series EdmoLift offers accessories such as a wheeled or raised frame, foot control and safety bellows: ask us which suit your use.

Lift tables must meet EN 1570-1 safety requirements and carry the CE mark: the CL 1001 complies and comes with the user manual.

A pit of 1230 × 830 mm, 185 mm deep: platform length and width +30 mm, lowest height +5 mm. C12/15 concrete, 100 × 100 mm L-profile on the edges and a Ø 100 mm conduit for cables and hoses. For pit installation, limit switches, lifting eyes, mechanical blocks and an inspection hatch or an external power unit are recommended.

Yes: the platform top can be drilled to fix equipment or guides, avoiding the area where the scissor runs.

Only in the fixed colours orange and blue: the Series C cannot be customised.

The Series T is made entirely in Sweden and is configured with accessories, controls and colours. The Series C is the lighter, more economical version: the hydraulics and many components are the same as on the T, but it cannot be customised, takes only a few accessories and has fixed colours orange and blue.

A lift table brings the load to the right working height at the push of a button: people work without bending and without lifting by hand. If the load also has to move between workstations there is the scissor lift trolley; for picking from pallets and bins, the pallet lifters and tilters.

Start from three things: the weight of the load and how it rests, the lowest and highest working height (the difference is the stroke) and the platform size you really need. Then consider cycles per hour, environment and safety. The lift table buying guide, with its 4-question selector, shows you the suitable models.

For long or heavy loads there is the double horizontal scissor: two synchronised scissors in tandem lift a platform up to 6000 mm long, with capacities up to 10,000 kg. For long strokes without a bigger footprint, also to connect two levels, the double, triple or quadruple vertical scissor reaches a 6000 mm stroke.

A low-profile lift table: closed, it is only 80–100 mm high and stands on the floor, with no building work. With a U- or E-shaped platform (TUL, TUB, CUB) the pallet truck leaves the pallet on the platform; with a full platform you drive on via the access ramp. Capacity up to 2000 kg.

A flat, level concrete base of at least C12/15, anchoring with at least four expansion bolts and the electrical connection made by an authorised electrician. The CEE plug, motor protection and main switch are normally not included in the supply.
