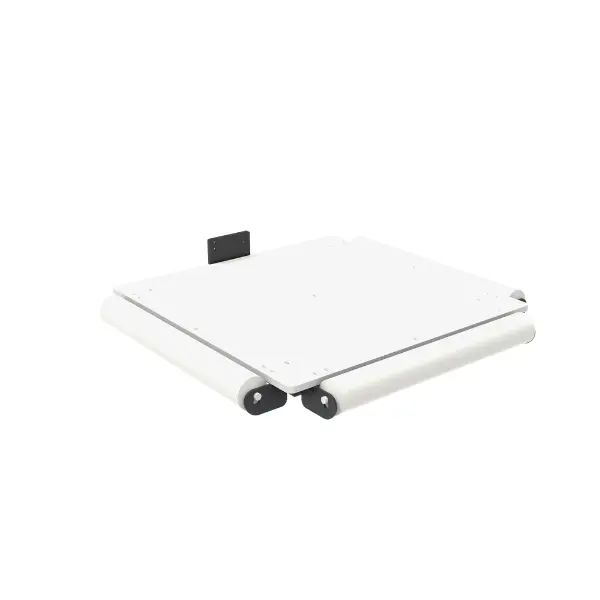

HDPE Platform with Rollers 85 kg
The HDPE Platform with Rollers 85 kg is a work positioning platform with an HDPE surface and integrated rollers, available with a steel or stainless steel frame, in the standard size of 500 x 500 mm. The rollers make it easier to slide and reposition parts during operations, reducing operator effort. With a maximum load of 85 kg (steel frame) or 80 kg (stainless steel frame), it integrates into Work Positioner solutions for ergonomic workstations in line with lean manufacturing principles.
Work Positioner Tools · Platforms
HDPE Work Positioner Platform with Rollers 85 kg
HDPE top with rollers: the load slides across the top and onto the bench or machine without lifting it by hand. Up to 85 kg with a painted steel frame, 80 kg with a stainless steel frame. It is a work positioner platform: the lifter top the load rests on.
Why choose it
The load slides
Boxes and containers are pushed over the rollers instead of being lifted.
From WP 55 to WP 205
85 kg on WP 125 and WP 205, 75 kg on the WP 85, 45 kg on the WP 55.
Steel or stainless steel
Stainless steel frame with a maximum capacity of 80 kg.
See it at work
WP 85 SS with roller platform
Technical data
| Version | Steel, Stainless Steel |
| Length mm | 500 |
| Width mm | 500 |
The usable capacity depends on the Work Positioner the tool is fitted to: you will find it below for each model.
WP 55Usable capacity 45 kg
WP 65Usable capacity 55 kg
WP 85Usable capacity 75 kg
WP 125Usable capacity 85 kg
WP 205Usable capacity 85 kgWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
