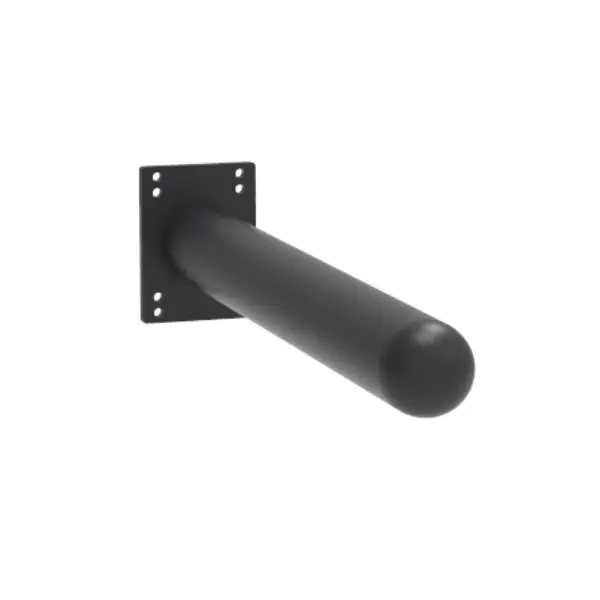

Boom tube Ø 60
The Single boom Ø 60 is a cantilever tube with a diameter of 60 mm, available in steel or stainless steel, in a length of 500 mm. Weighing 3 kg, it is compatible with the WP 55, WP 65, WP 85, WP 125 and WP 205 Work Positioners, with a load capacity of up to 120 kg depending on the model it is paired with. The stainless steel version also makes it suitable for environments with high hygiene requirements.
Work Positioner Tools · Booms
Work Positioner Boom Ø 60 mm for Reels, 120 kg
Cantilever boom with an end cap: it slides into the hole of the reel to lift and move it. 500 mm long, in painted steel or stainless steel, up to 120 kg on WP 125 and WP 205. A reel mandrel (boom) for work positioners.
Why choose it
For reels
It slides into the hole and picks up the reel.
Steel or stainless steel
In painted steel or stainless steel.
From WP 55 to WP 205
50 kg on the WP 55, 120 kg on WP 125 and WP 205.
Technical data
| Specification | Value |
|---|---|
| Version | Steel, Stainless Steel |
| Length mm | 500 |
| Width mm | 60 |
The usable capacity depends on the Work Positioner the tool is fitted to: you will find it below for each model.
WP 55Usable capacity 50 kg
WP 65Usable capacity 60 kg
WP 85Usable capacity 80 kg
WP 125Usable capacity 120 kg
WP 205Usable capacity 120 kgWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
