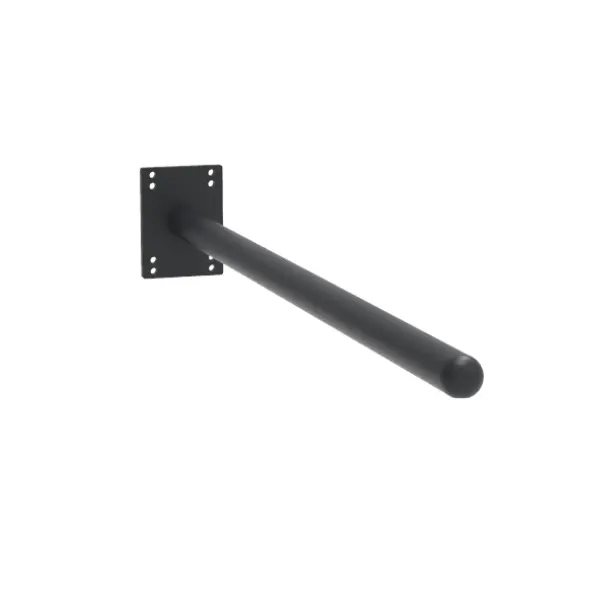

Boom tube Ø 35
Tube boom with end cap, custom-built in the length you need: it slides into the reel hole to lift it with the Work Positioner. Capacity 80 kg from WP 85 to WP 205, 60 kg on the WP 65, 50 kg on the WP 55.
Work Positioner Tools · Booms
Work Positioner Boom Ø 35 mm for Reels
Slim boom with an end cap for reels with a small hole. In painted steel or stainless steel, up to 80 kg. A reel mandrel (boom) for work positioners.
Why choose it
Small hole
For reels and loads with a narrow hole.
Steel or stainless steel
In painted steel or stainless steel.
From WP 55 to WP 205
50 kg on the WP 55, 80 kg from WP 85 to WP 205.
Technical data
| Version | Steel, Stainless Steel |
| Width mm | 35 |
The usable capacity depends on the Work Positioner the tool is fitted to: you will find it below for each model.
WP 55Usable capacity 50 kg
WP 65Usable capacity 60 kg
WP 85Usable capacity 80 kg
WP 125Usable capacity 80 kg
WP 205Usable capacity 80 kgWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
