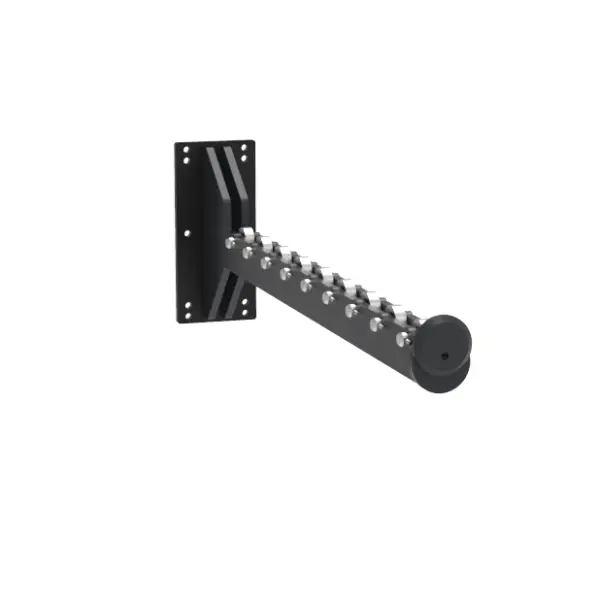

Bearing boom Ø 76

Thanks to the bearings the load slid onto the boom can turn on it, so it can be rotated while lifted. It carries up to 180 kg on the WP 205.

Usable capacity with this tool: 50 kg on the WP 55, 60 kg on the WP 65, 80 kg on the WP 85, 120 kg on the WP 125 and 180 kg on the WP 205. For stainless steel Work Positioners there is the stainless steel version, code WPR-T-9035-SS.

Yes, with the quick change for manual tools: the trolley part stays on the Work Positioner (WPR-A-0001-SS up to the WP 125, WPR-A-0003-SS for WP 125 and WP 205) and the tool part is fitted to this tool. You can then change it in a few seconds, on your own, without unscrewing it; without the quick change it is fixed to the carriage with screws.

With a work positioner and the right tool: the boom goes into the core of the reel, the gripper clamps it from the outside, and there is also an electric gripper that turns it through 90°. For drums there is the manual front tilting gripper, which lifts and tilts them with a handwheel.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.
